DCTan Door
1 / 5

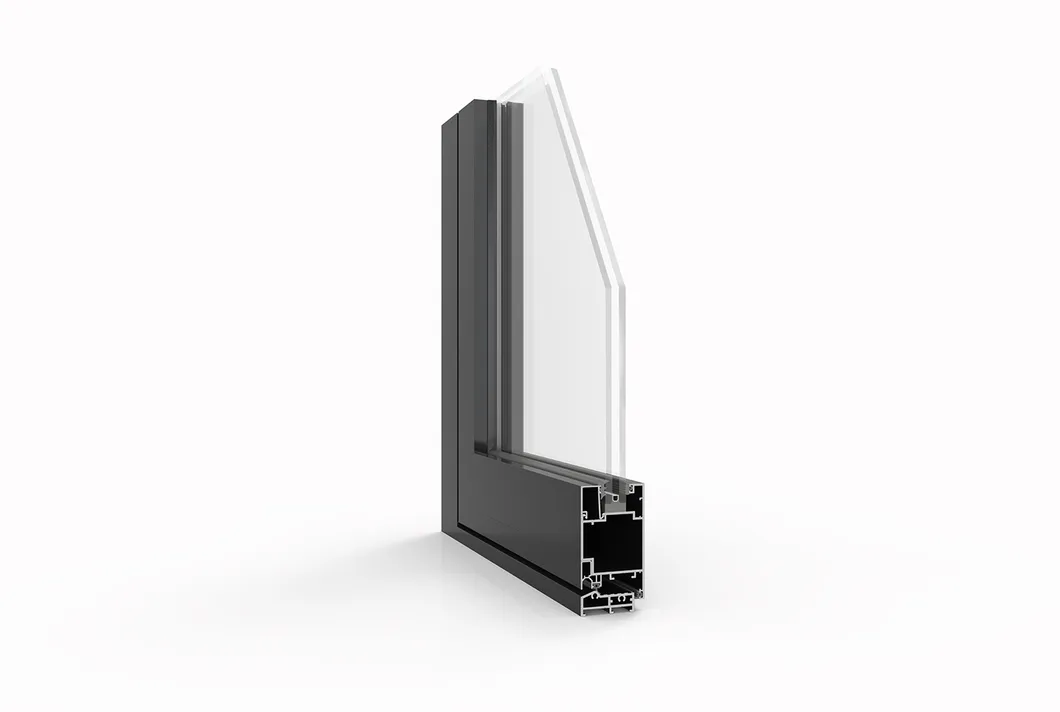

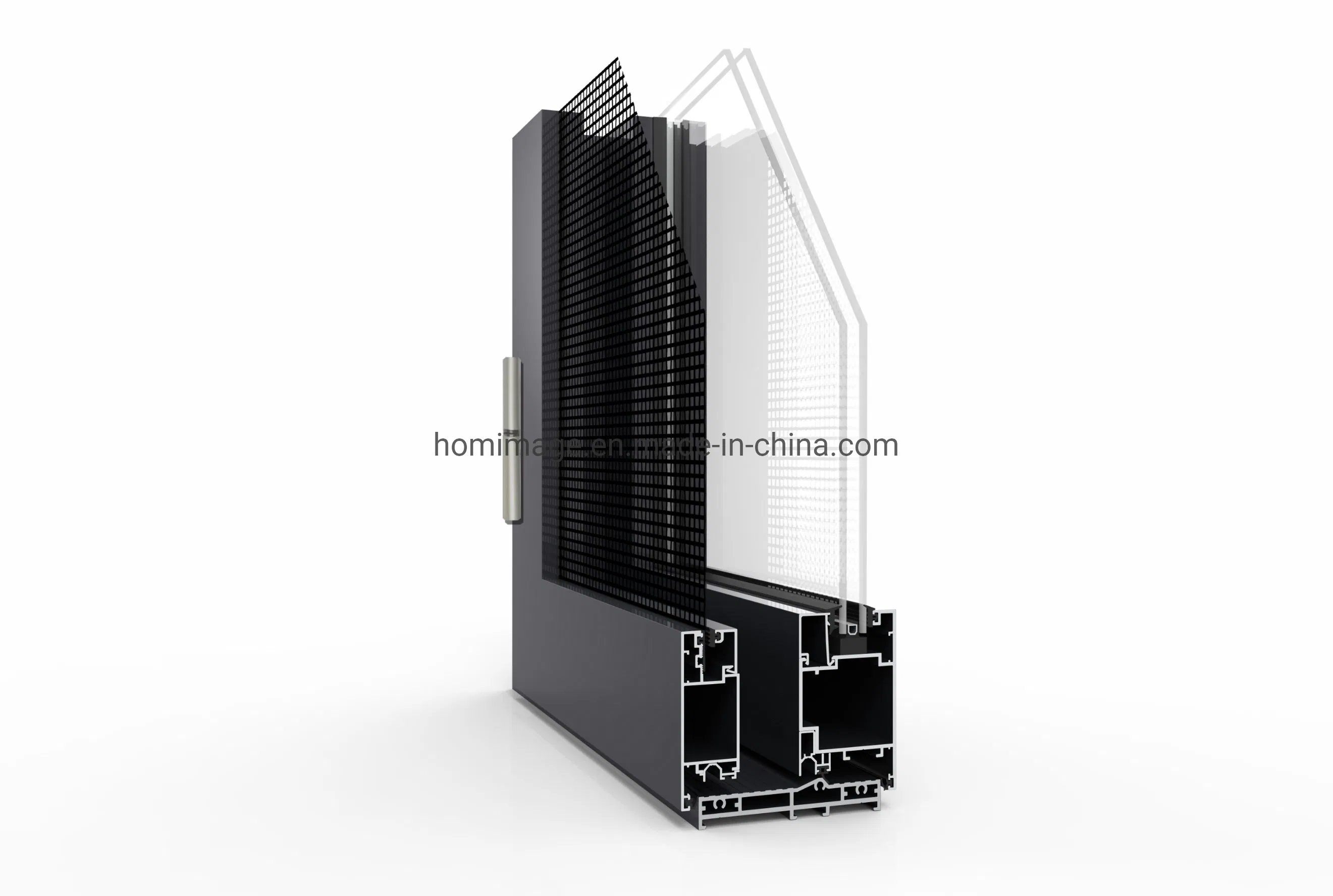

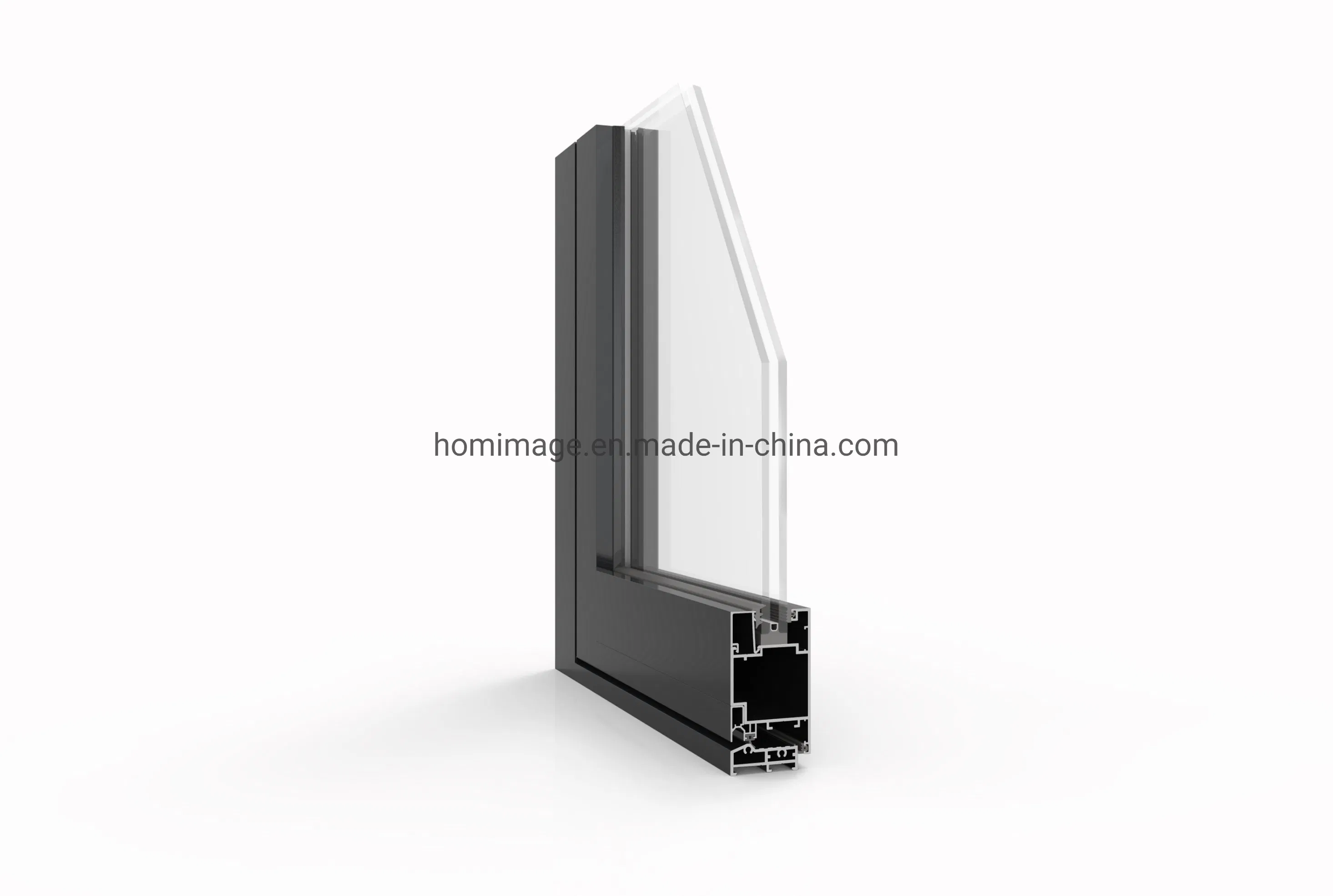

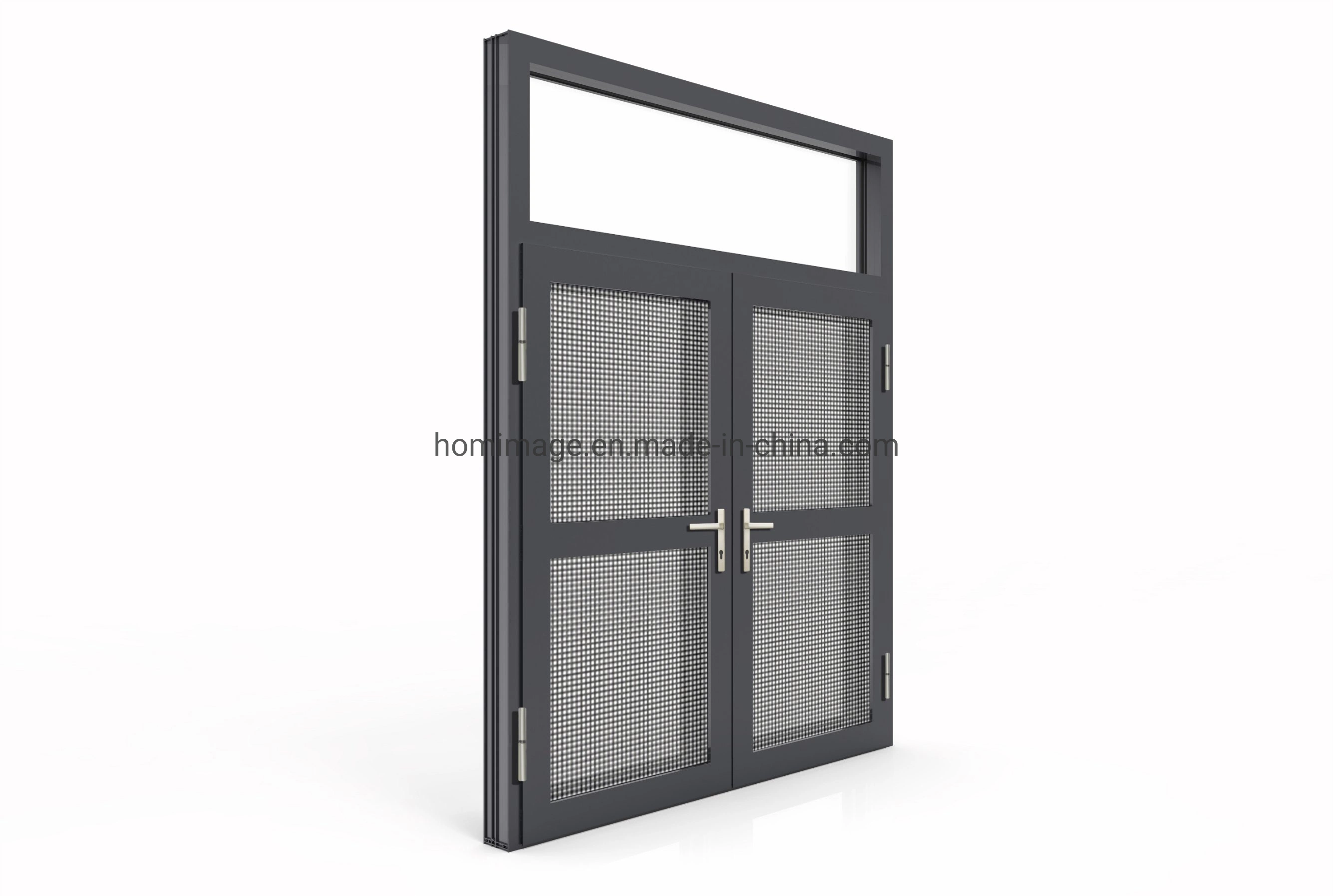

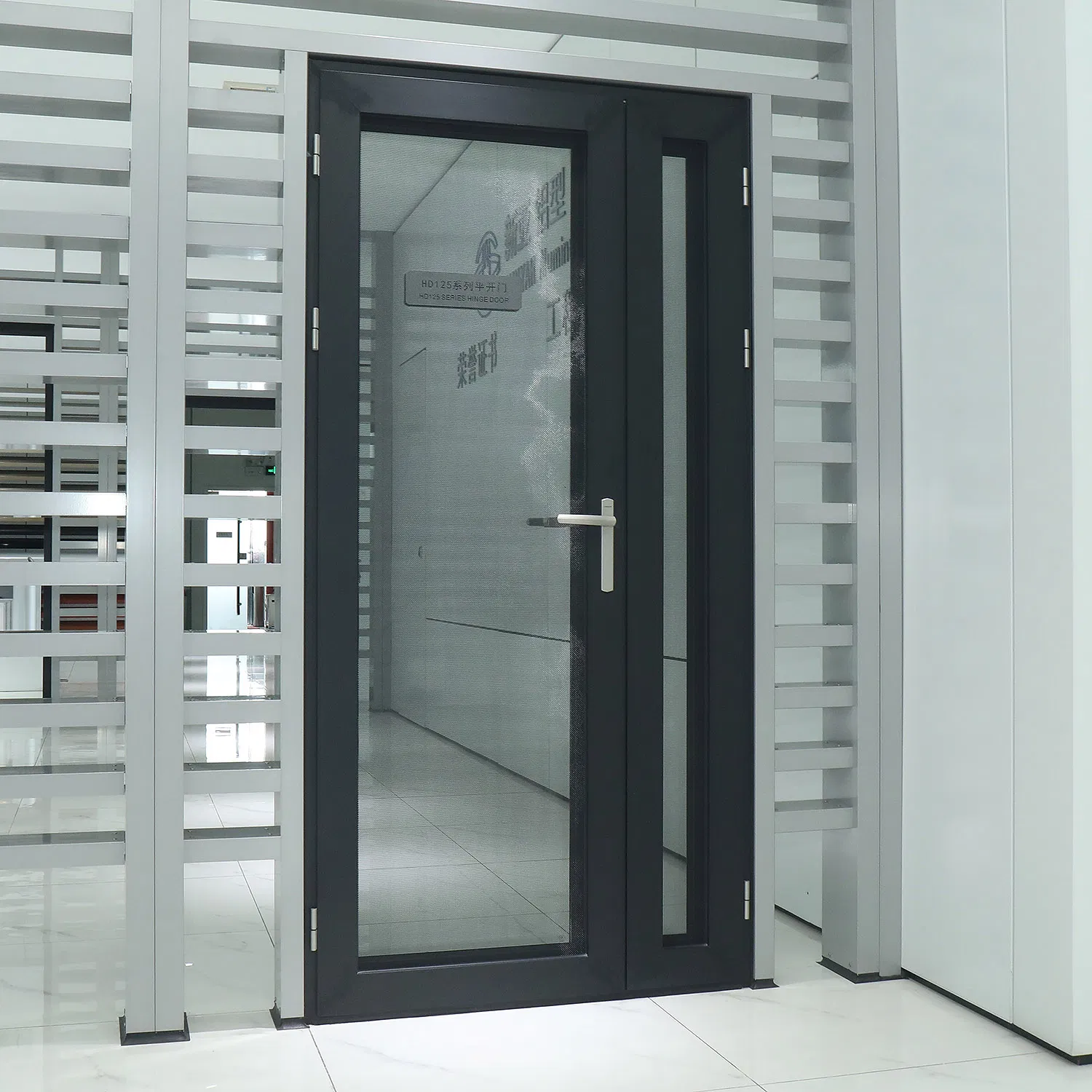

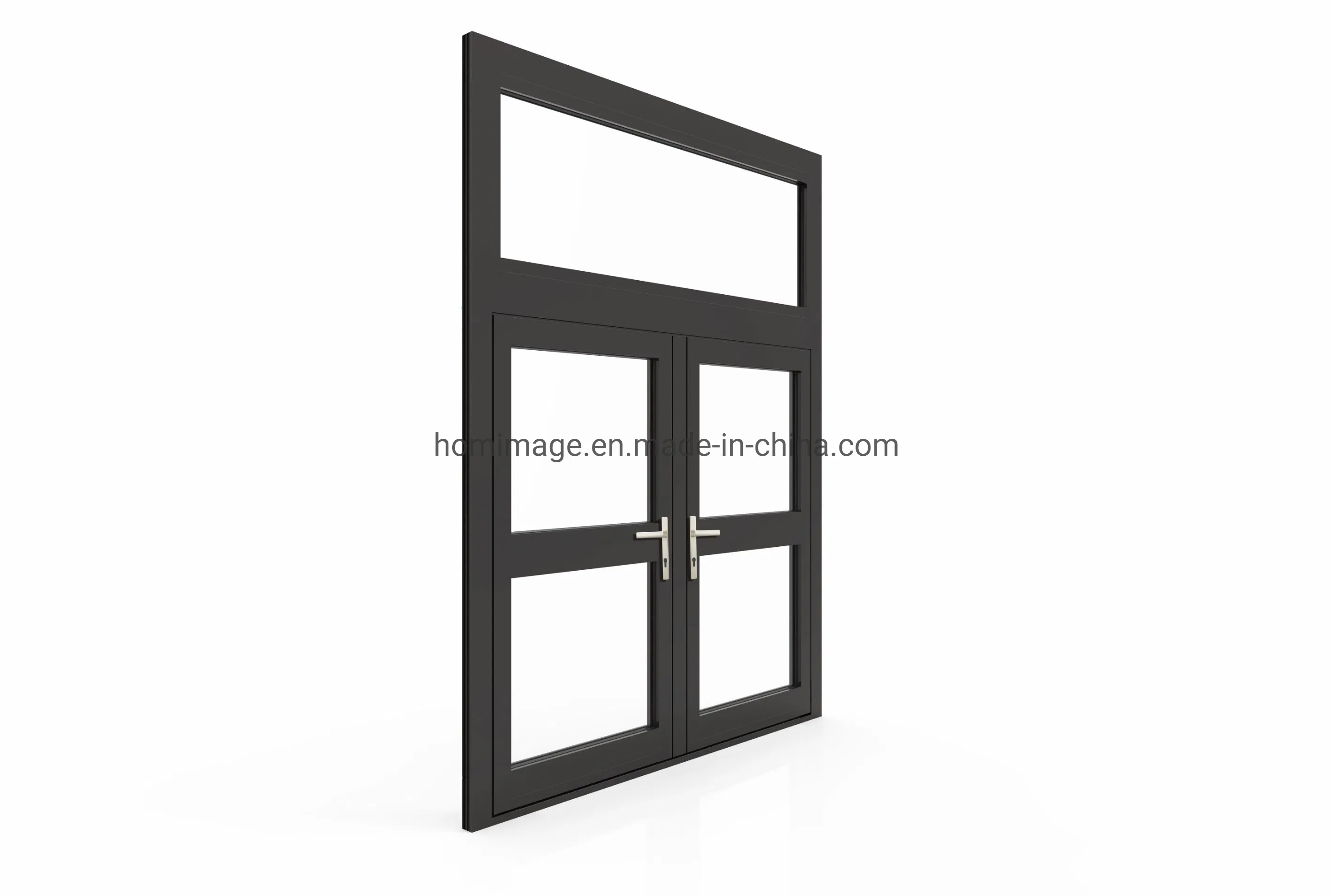

HD49 & 125 is an outside-inside casement system for elegant doors, featuring multiple opening ways including outside and inside. The system offers 3 options based on customer demands and performance requirements. This includes casement doors with security screens and options for single or double windows.
| Performance Data | ||||
|---|---|---|---|---|
| Heat Preservation (W/m2.k) | Sound Insulation (DB) | Watertight (Pa) | Airtight Performance | Wind Resistance (KPA) |
| 6+12A+6 Low-E: 2.3-2.8 (Level 5/6) | 35DB (Level 4) | 500PA (Level 5) | Level 5 | 4.1KPA (Level 7) |
| Sizing & Specifications | |||
|---|---|---|---|
| Sash Dimensions | Visible Width/Height | Aluminium Depth | Glass Thickness |
| Width: 500-1200mm Height: 1920-3000mm Weight: 140kg |
HCD49: Frame 65mm / Sash 91mm HCD125: Frame 57mm / Sash 91mm |
HCD49: Frame 49mm / Sash 58mm HCD125: Frame 125mm / Sash 58mm |
SGU: 5-10mm DGU: 19-35mm |
POWDER COATING, ANODIZED AND WOODEN FINISH
ALUMINIUM EXTRUSION CAPACITY
| Alloy: 6063/6061-T4,5,6 | Extrusion Diameters: 80mm-300mm | Billet Casting: 2 Lines |
| Extrusion: 14 Lines | Coating: 1 Vertical Line | Anodized: Full Auto Line |

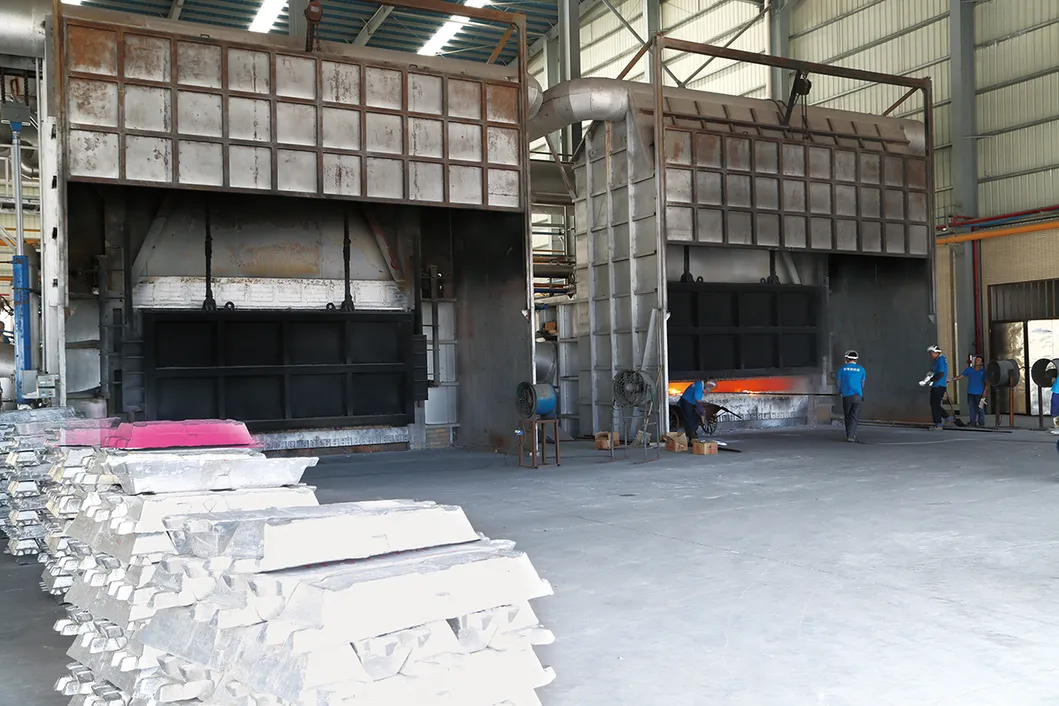

Billet Casting

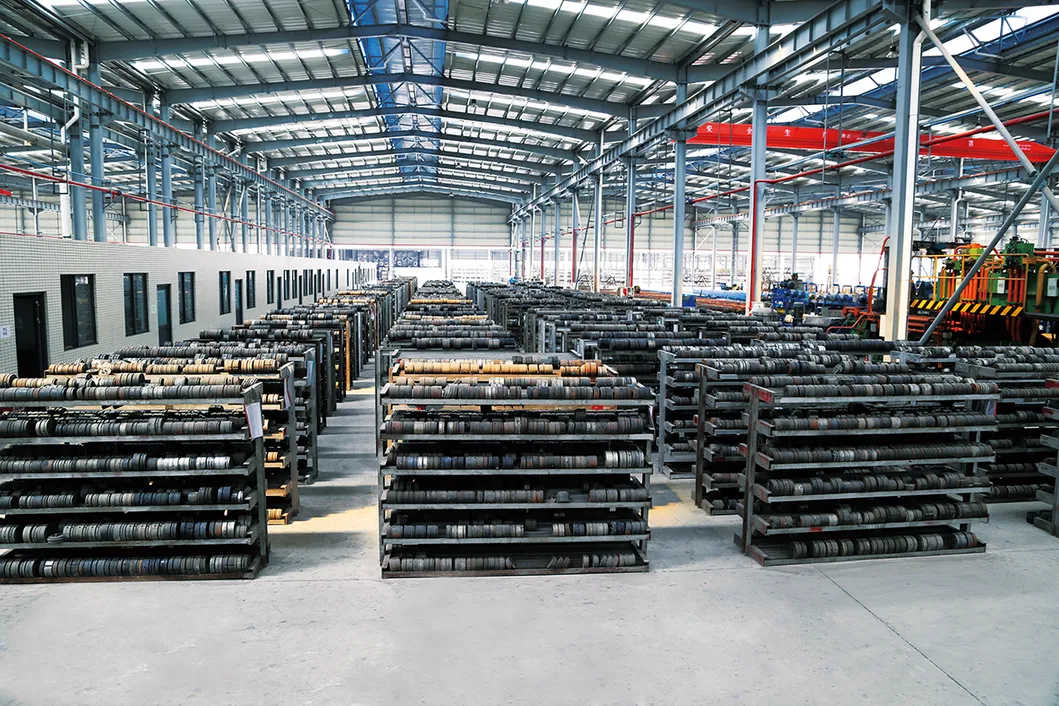

Dies Workshop

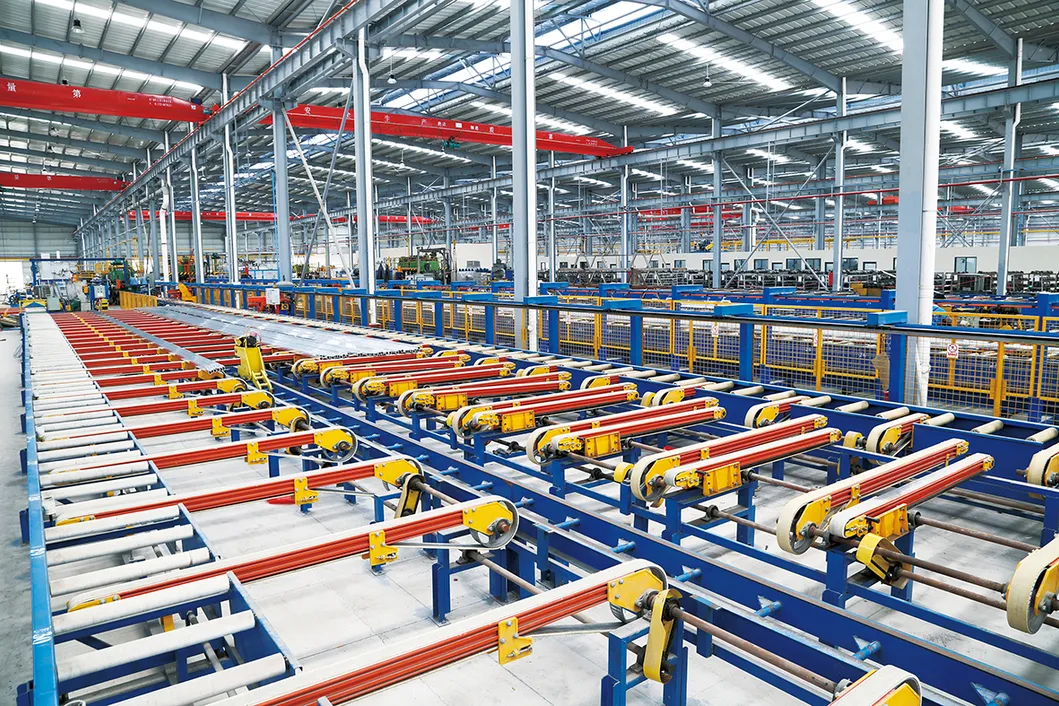

Extrusion Workshop

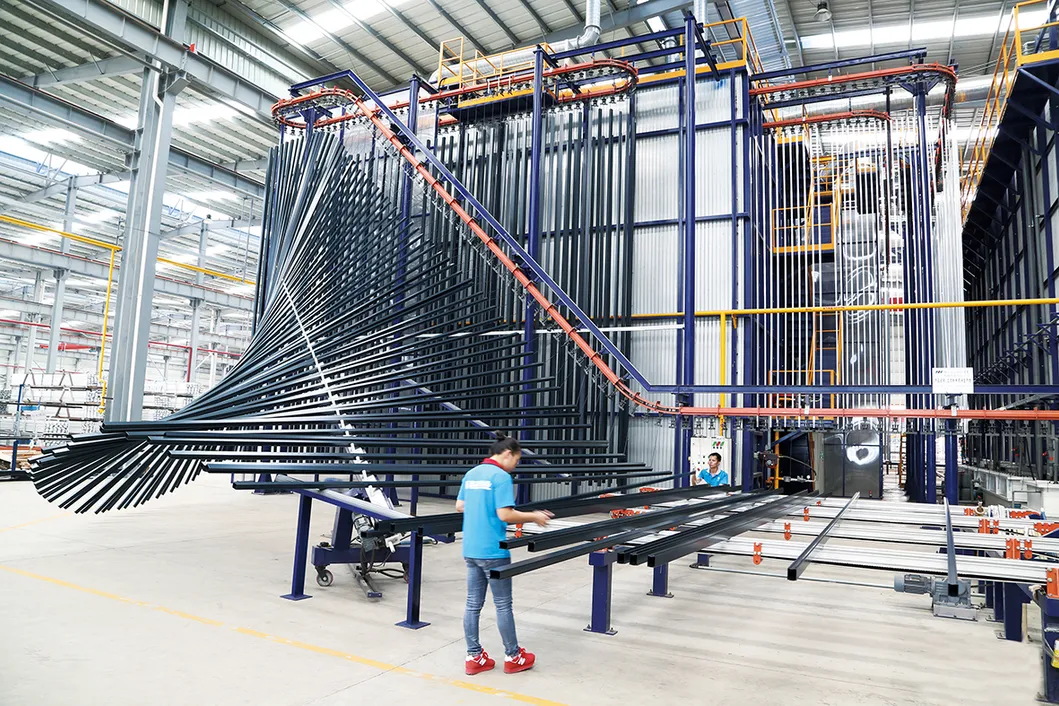

Powder Coating Line
✔Customized Solutions: Professional suggestions for engineering and design needs across various project complexities.
✔Technical Support: Wind load calculation, system optimization, and installation guidance.
✔System Design: Developing new window and door systems with high-quality accessories to meet market requirements.
