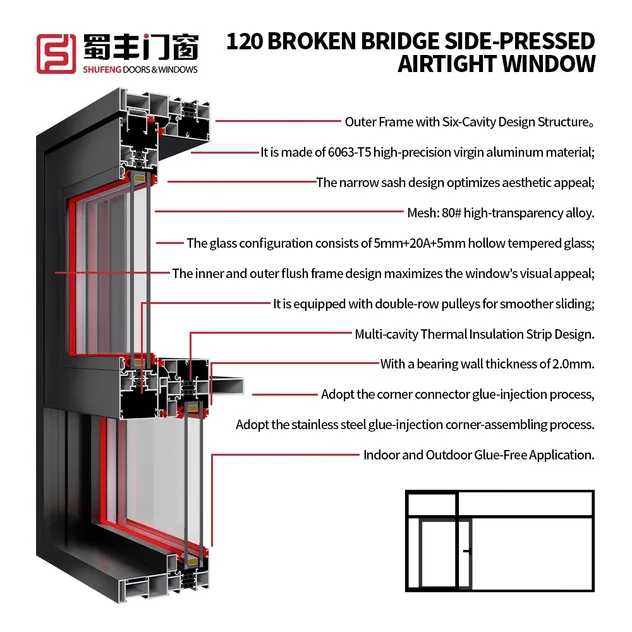

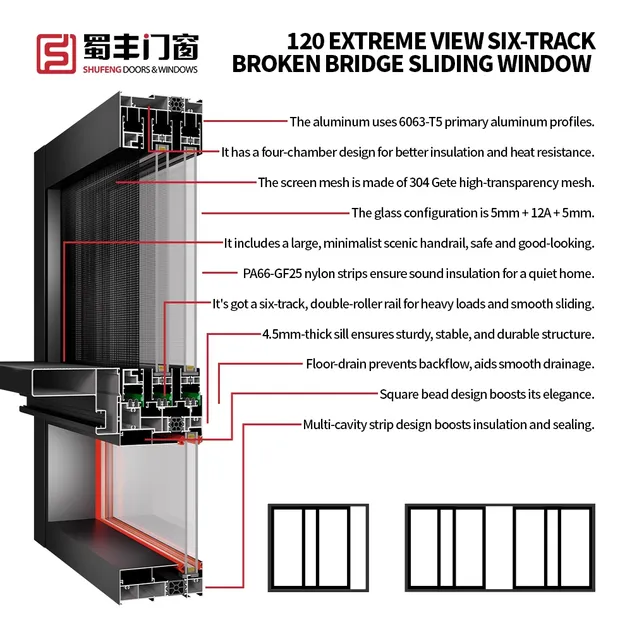

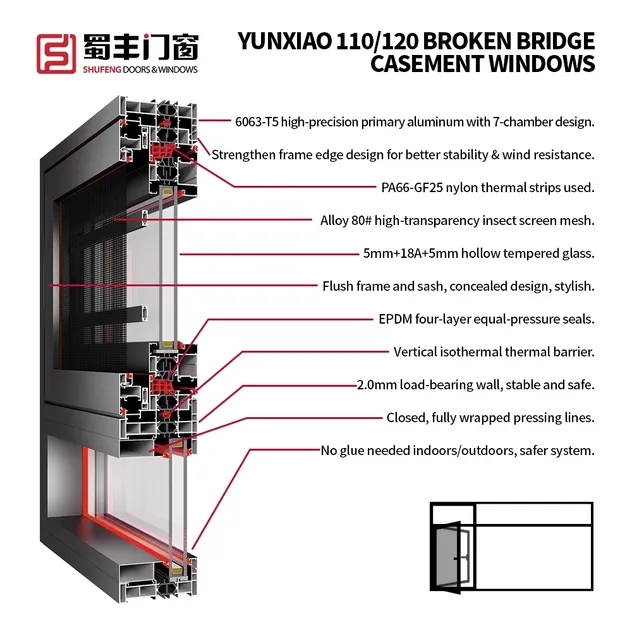

Premium Aluminum Profile: High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.
Hardware: After 100,000 cycles of testing, super load-bearing, comfortable and durable.
Flush Design: Frame fan flush design for improved visual aesthetics and sealing strip protection.
Pin Gluing Process: High strength corner code components combined with system pin gluing for maximum tightness.
| Project Name | Technical Details |
|---|---|
| Contour thickness | Window: 1.4-3.0 mm | Door: 1.4-5.0 mm |
| Size | Customized according to requirements |
| Glass Options | Double-glazed (5mm+12A+5mm etc.), Lowe, or Laminated glass |
| Surface Treatment | Powder coating (Anti-corrosion, 20-year color warranty) |
| Hardware | German VBH or RLS (Top China Brand) |
| Test Item | Result | Level |
|---|---|---|
| Air tightness (Positive Pressure) | 1.4 [m³/(m·h)] | Level 6 |
| Water tightness performance | 350 Pa | Level 4 |
| Wind resistance performance | 2.69 kPa | Level 4 |
| Thermal insulation (U-value) | 2.2 W/(m²·K) | Level 6 |

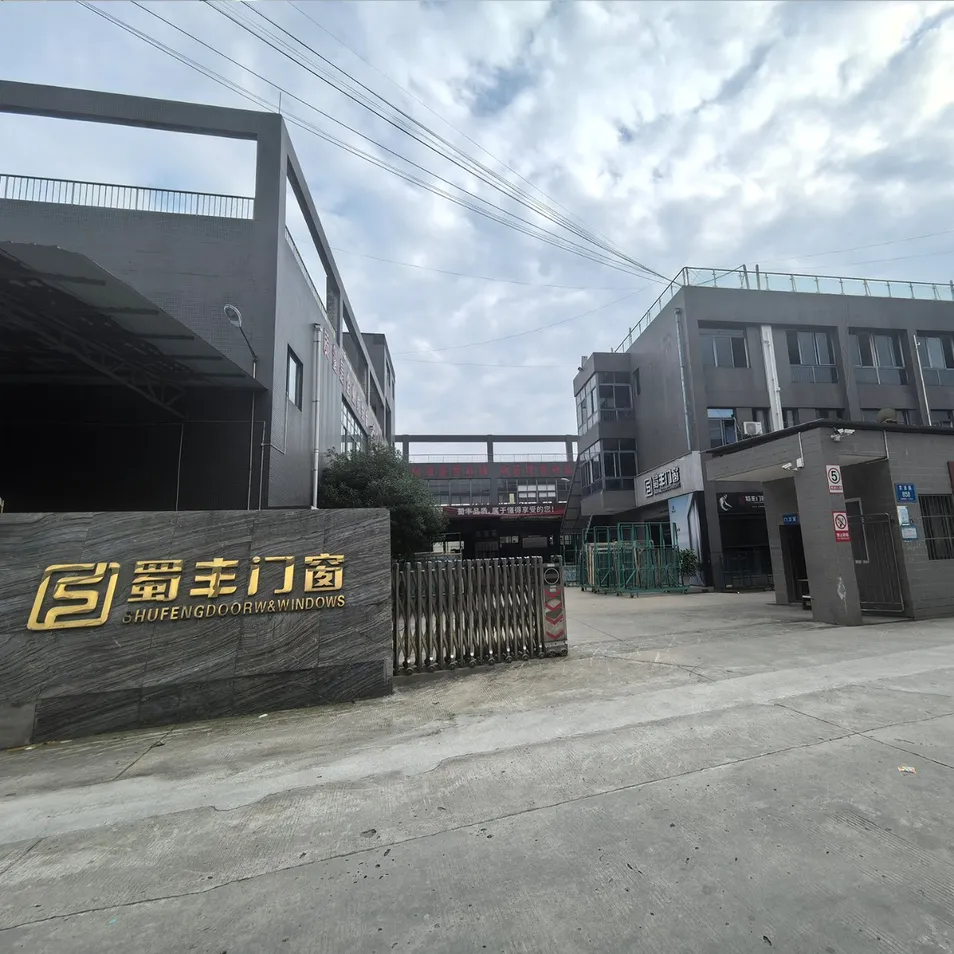

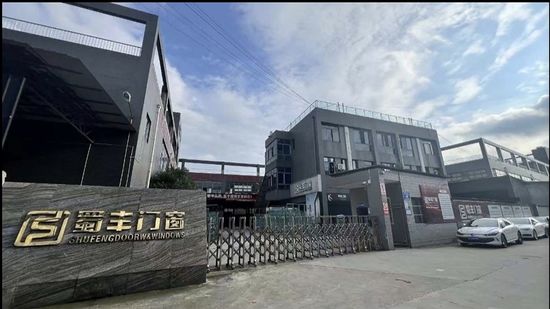

Founded in 2014, our facility covers 7,000 square meters. We are a comprehensive door and window enterprise integrating design, R&D, manufacturing, and service. Over 10 years, we have committed to high-quality products and excellent technical support. Adhering to innovation, we build benchmark aluminum solutions for modern, rational resource use and environmental protection.
